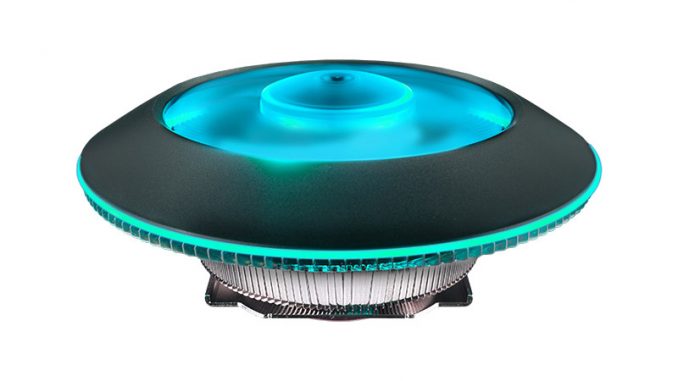

Cooler Master MasterAir G100M Low Profile CPU Cooler Review

First off I’d like to give a huge shout out to Cooler Master for sending me this product for review! Today will be taking a look at the Cooler Master MasterAir G100M Cooler.

For those who haven’t heard of Cooler Master, here’s a quick blurb taken from their website …



Think Cooler

WHAT WE’RE ALL ABOUT

We’re all about the things that make building a PC such a rewarding experience. The sense of achievement. The joy of making and creating something uniquely yours in form and function. The freedom that comes from complete control. And of course, the thrill of bringing your creation to life without melting your components.





THE CORE OF COOLER MASTER

We’re sustained by a belief that something as endlessly useful and diverse as a PC can never really die, and a vision that we can re-invent the way they are designed, made, bought and used. It’s a vision that stems from the core of our company, from our heritage as innovators of the initial strides forward in thermal technology, to our commitment to pioneer a modular future. We’re also committed to keeping our design, testing and manufacturing in-house, to give us the edge in ideas, craft and quality.

COOLER MASTER IN THE COMMUNITY

We realize people want to express themselves in all the things they make and do. So in everything from components to cases, the way they are configured and the way they look and feel, Cooler Master is committed to giving greater choice and control to you. That commitment is made real in our community of makers and creators. After all, it’s you guys who bring our ideas to life.



Product Overview and Specifications


7X LARGER DIAMATER THAN HEATPIPES
Super quick heat transfer is made possible with Heat Column at a massive Ø41.2, the equivalent of 7X the size of traditional heatpipes. The unification of heatpipes and base into one unit captures and effiicienty transfers the heat from CPU like never seen before.RGB LED ILLUMINATION (CONTROLLER INCLUDED)
A wired RGB LED controller is included with theM100M to personalize the RGB lighting anytime you want (no software needed). Switch it up depending on your mood, the possibilities are not limitless.TOP DOWN AIR FLOW PERFORMANCE
A high peformance 92mm PWM fan with a range of 600 ~ 2400 RPM, cools not only the CPU, but all surrounding components inside the case for exceptional thermal results.
BREAK-THROUGH IN HEAT TRANSFER
The contact with CPU and heat transfer has been improved with an entire block of Heat Column for thermal conductivity and phase transition. This revoluationary design enables low profile design to reach TDP of 130W that matches peformance of regular sized heatsinks.QUICK AND EASY INSTALLATION
Tool-free mounting kit makes installation a breeze. Universal retention brackets are included, with full compatbiliity for:
Intel® LGA 2066 / 2011-v3 / 2011 / 1151 / 1150 / 1155 / 1156 / 1366 / 775
AMD® AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1LOW PROFILE FOR MINI-ITX BUILDS
The low profile G100M stands at 74.5mm, a great fit for slim PC cases, including mini-ITX cases. Even at these small dimensions, the heatsink has cooling capacity of 130W TDP.DIMENSIONS
REDEFINING COOLING AGAIN
MASTERAIR G100M
with RGB Controller






Specifications

Product Name MasterAir G100M
Model number MAM-G1CN-924PC-R1
CPU Socket Intel® LGA 2066 / 2011-3 / 2011 / 1151 / 1150 / 1155 / 1156 / 1366 / 775 socket

AMD® AM4 / AM3+ / AM3 / AM2+ /AM2 / FM2+ / FM2 / FM1 socket

Dimensions 145 x 145 x 74.5 mm (5.7 x 5.7 x 2.9 inch)
Heat Sink Dimensions 143 x 143 x 51.7 mm (5.6 x 5.6 x 2.0 inch)
Heat Sink Material Heat Column / Aluminum Fins
Heat Sink Weight 320g (0.70lb.)
Heat Column Dimensions Ø41.2*46.3 mm
Fan Dimensions 100 x 100 x 25 mm (3.9 x 3.9 x 1 inch)
Fan Speed 600~2400 RPM (PWM) ± 10%
Fan Airflow 22.63 CFM ± 10%
Fan Air Pressure 1.6 mmH2O ± 10%
Fan MTTF 280,000 hrs
LED color RGB ready
Fan Noise Level (dBA) 30 dBA (Max)
Fan Connector 4-Pin (PWM)
Fan Rated Voltage 12 VDC
Fan Rated Current 0.34 A
Fan Safety Current 0.37 A
Fan Power Consumption 4.08 W
Warranty 2 years
EAN Code 4719512065341
UPC Code 884102037863



Now lets move onto the unboxing and installation.
