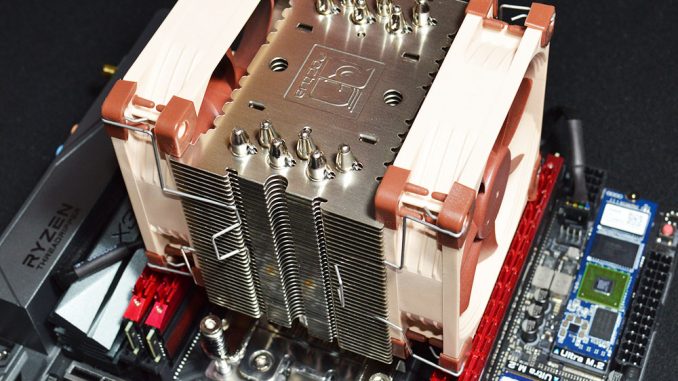

Noctua NH-U9 TR4-SP3 AMD Threadripper CPU Cooler Review

I don’t think we’ve reviewed any CPU coolers for AMD Threadripper so it’s about time to present a couple of cooling solutions for this HEDT platform.

I was surprised how few coolers for the Threadripper are available on the market. Not many brands decided to release these products and I guess it’s because of the fact that with high performance and great marketing success of this platform are not coming sales. However, there are manufacturers like Noctua who care to deliver cooling solutions even for these less popular products.

I won’t hide that you will be able to see the whole line of Noctua coolers for the Threadripper processors so if you are interested in this topic then stay with us for next couple of weeks.

The first review will present the smallest, yet powerful NH-U9 TR4-SP3 cooler. Let’s begin with the specifications and features.

noctua_logo_w_500

Having received more than 300 awards and recommendations from international hardware websites and magazines, Noctua’s NH-U9 line has become a benchmark for compact 92mm single tower coolers. The TR4-SP3 version is a tailored custom model for AMD’s TR4/SP3 platform (Ryzen Threadripper / Epyc) and features a larger contact surface as well as the latest SecuFirm2™ mounting system for socket TR4/SP3. Topped off with two of the renowned quiet NF-A9 PWM 92mm fans in a push/pull dual fan configuration, Noctua’s proven NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-U9 TR4-SP3 forms a highly compact, premium-quality solution that combines outstanding performance, superb acoustics and excellent compatibility for space-restricted TR4/SP3 systems

Award-winning NH-U series

Award-winning NH-U series

The NH-U9 TR4-SP3 stems from Noctua’s award-winning NH-U9 series. First introduced in 2005, the NH-U series has become a standard choice for premium quality quiet CPU coolers and won more than 1000 awards and recommendations from leading international hardware websites and magazines.

Tailored custom version for TR4/SP3 (Ryzen Threadripper / Epyc)

Tailored custom version for TR4/SP3 (Ryzen Threadripper/Epyc)

At 70x56mm, the copper contact surface of the TR4-SP3 version is more than double the size of the standard model. Tailored to fit the enormous integrated heat-spreaders (IHS) of AMD’s TR4/SP3-based processors, this customized design allows for an optimal heat flow from the CPU over the base to the heatpipes and on to the cooling fins.

Compact 92mm size for best compatibility

Compact 92mm size for best compatibility

Thanks to a total width of only 95mm, the NH-U9 TR4-SP3 provides 100% PCIe clearance and never overhangs the top PCIe x16 slot. At the same time, its height of only 125mm allows it to fit smaller cases and most 4U size rack-mount enclosures.

Dual NF-A9 PWM fans

Dual NF-A9 PWM fans

The NH-U9 TR4-SP3 is equipped with two of Noctua’s award-winning NF-A9 PWM 92mm fans. This push/pull dual fan configuration allows it to achieve a level of quiet cooling performance that is remarkable for such a compact cooler and comes close to the bigger NH-U12S TR4-SP3.

PWM support and Low-Noise Adaptors

PWM support and Low-Noise Adaptors

The NF-A9 premium fans supplied with the NH-U9 TR4-SP3 support PWM for convenient automatic speed control through the motherboard. In addition, the maximum fan speed can be reduced from 2000 to 1550rpm using the supplied Low-Noise Adaptors for even quieter operation.

SecuFirm2™ mounting system for TR4/SP3

SecuFirm2™ mounting system for TR4/SP3

Noctua’s SecuFirm2™ mounting systems have become synonymous with quality, safety, and ease of use. The TR4-SP3 variant has been completely custom-designed for the new socket and is particularly easy to install: Put on the heatsink, fix the four spring-loaded screws and you’re done!

NT-H1 thermal compound

NT-H1 thermal compound

Noctua’s much-acclaimed NT-H1 is a well proven pro-grade TIM solution that provides minimum thermal resistance, excellent ease-of-use and outstanding reliability, which makes it suitable for use in professional server and workstation environments.

6-year manufacturer’s warranty

6-year manufacturer’s warranty

Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A9’s feature an MTTF rating of more than 150,000 hours and the entire NH-U9 TR4-SP3 package comes with a full 6-year manufacturer’s warranty.



Cooler Specification

Height (without fan)  125 mm
Width (without fan)  95 mm
Depth (without fan)  71 mm
Height (with fan)  125 mm
Width (with fan)  95 mm
Depth (with fan)  120 mm
Weight (without fan)  660 g
Weight (with fan/s)  895 g
Material  Copper (base and heat-pipes), aluminum (cooling fins), soldered joints & nickel plating
Fan compatibility  2x 92x92x25mm
Scope of delivery
  • 2x NF-A9 PWM premium fan
  • 2x Low-Noise Adaptor (L.N.A.)
  • Y-split cable
  • NT-H1 high-grade thermal compound
  • SecuFirm2™ mounting kit for TR4/SP3
  • Noctua metal case-badge
Warranty   6 Years



FAN Specification

Bearing  SSO2
Max. Rotational Speed (+/- 10%)  2000 RPM
Max. Rotational Speed with L.N.A. (+/- 10%)  1550 RPM
Min. Rotational Speed (PWM, +/-20%)  400 RPM
Max. Acoustical Noise  22,8 dB(A)
Max. Acoustical Noise with L.N.A.   16,3 dB(A)
Input Power  1,2 W
Voltage Range  12 V
MTTF  > 150.000 h



You can by the Noctua NH-U9 TR4-SP3 CPU cooler from Amazon for USD $70 – https://amzn.to/2sS1YYn
