Antec Prizm 120 ARGB 5+C – Features and Specifications

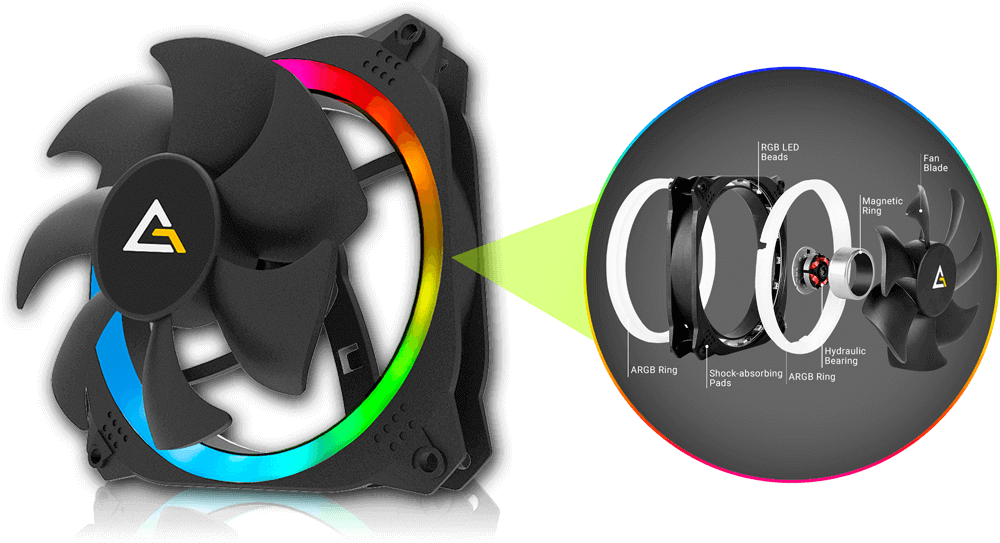

Dual-Ring Design
The Prizm ARGB series case fans come in two sizes -120 and 140 mm, and feature a dual-ring aperture design, which allows you to display RGB effects on both sides of the assembly.
18 Independent RGB LED Beads
Each LED bead can emit a variety of lighting colors to enrich your vision.
Motherboard Sync Addressable RGB LED Lighting
Enjoy nearly 16.8 million customized RGB colors and effects through compatibility with top-end motherboard manufacturers.
ARGB LED Lighting Mode
Up to 16.8 million colors and coordinate your own custom schemes for endless variety.
Fan Controller (Included)
Multi-function fan controller for up to 5 fans. Easily switch between light modes to create a unique custom color.
PWM Intelligent Case Fan
Fan speed automatically adjusts according to temperature, effectively reducing system noise while achieving excellent heat dissipation
Hydraulic Bearing / Shock-Absorbing Pads on All Four Corners
| Model Name | Prizm 120 ARGB 5+C |
| Fan Type | PWM Fan |
| Dimensions (mm) | 120*120*25 mm |
| Bearing Type | Hydraulic |
| LED Type | Addressable RGB |
| Fan Speed (RPM) | 2000 max. |
| Airflow (CFM) | 45.03 max. |
| Air Pressure (mmH2O) | 2.56 max. |
| Fan Noise Level (dBA) | 32.6 max. |
| Lifespan | 40000 hours |
| Connector | Fan: 4 pin ; ARGB: 3 pin |
| Rated Voltage | FAN: DC12V ; LED: DC5V |
| Operating Voltage | FAN: DC6.0-13.8V; LED: DC4.5-5.3V |
| Rated Current (A) | FAN: 0.18A±20% ; LED: 0.80A±20% |
| Warranty | 2 years |
| Fan Control Box | ARGB port x 5, PWM fan port x 5, SATA, Mode, External LED CTRL, M/B Sync, LED Speed |
| UPC# | 0-761345-77512-0 |
Now that we have covered the features and specifications of the Antec Prizm 120 ARGB 5+C fan kit, let’s flip over to the next page of this review and take a closer look.
