ASRock X570S PG Riptide Motherboard Review

Features and Specifications

Features

  • Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series and 5000 Series Desktop Processors
  • 10 Phase, Digi Power, Dr. MOS
  • Supports DDR4 5000+ (OC)*
  • 3 PCIe 4.0 x16 Slots, 3 PCIe 4.0 x1 Slots
    1 M.2 Key-E for WiFi
  • Graphics Outputs: HDMI
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
  • 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4)
    1 Hyper M.2 (PCIe Gen4 x4 & SATA3)**
  • 3 USB 3.2 Gen2 (Front Type-C, Rear Type-A+C)
    8 USB 3.2 Gen1 (4 Front, 4 Rear), 6 USB 2.0 (4 Front, 2 Rear)
  • Killer E3100G 2.5G LAN

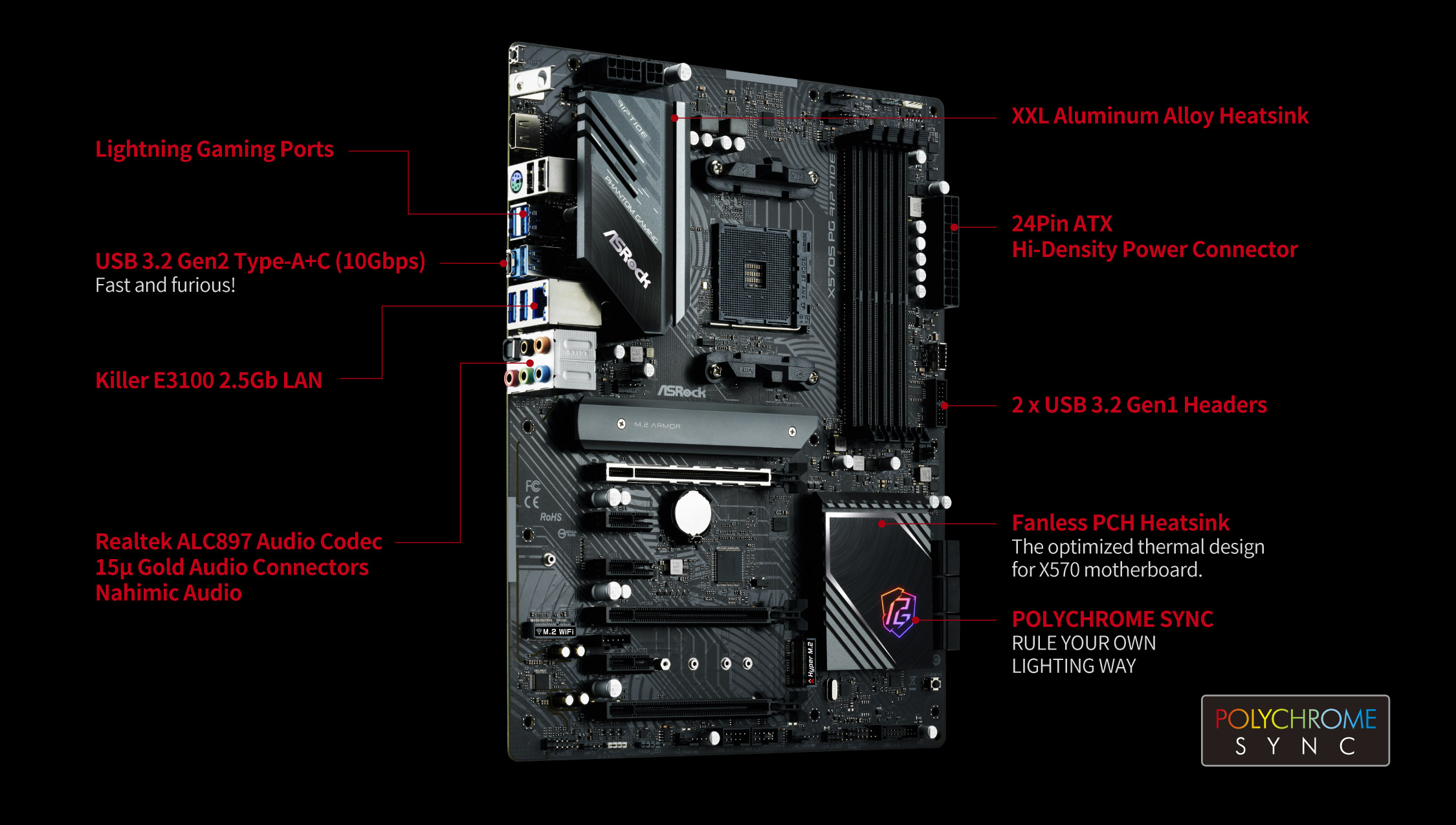

Overview

Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea’s double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability.

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Premium 60A Power Choke

Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Killer™ Ethernet E3100

The Killer E3100 2.5 Gbps Ethernet controller is designed specically for competitive gamers and performance-hungry users. The enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications.

Intel® Killer™ Prioritization Engine

The Intel® Killer™ Prioritization Engine detects and optimally prioritizes over 1,000 different games, apps, and websites to deliver amazing online experiences, ensuring you get your lowest in-game latencies by prioritizing your gaming traffic above everything else.

AMD SMART ACCESS MEMORY

Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.

PCIe 4.0 High Speed M.2 Solution

This motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Lightning Gaming Ports – (Patent Pending)

Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!

Reinforced Steel Slot [PCIe 4.0 Version]

The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.

ASRock Graphics Card Holder – (Patent Pending)

Install your heavy graphics card on the holder; connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place.

RULE YOUR OWN LIGHTING WAY – POLYCHROME RGB

ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

Front USB 3.2 Gen2 Type-C

Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Dual USB 3.2 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

Thunderbolt 4 AIC Header

Thunderbolt 4 is no longer limited to certain chipset; ASRock skillfully implement the Thunderbolt 4 technology supporting Hot-Plug onto AMD motherboards. All you need is a Thunderbolt 4 AIC card!

Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Post Status Checker

An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.





Specifications

  • Unique Feature
    ASRock USB 3.2 Gen2
    – ASRock Front Panel USB 3.2 Gen2 Type-C Header (10 Gb/s)
    – ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
    – ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
    ASRock Super Alloy
    – XXL Aluminum Alloy Heatsink
    – Premium 60A Power Choke
    – 50A Dr.MOS
    – Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
    – Matte Black PCB
    – High Density Glass Fabric PCB
    – 2oz Copper PCB
    Killer 2.5G LAN
    ASRock Lightning Gaming Port
    ASRock Steel Slot Gen4
    ASRock Full Coverage M.2 Heatsink
    ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)
    ASRock POST Status Checker (PSC)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
  • CPU
    – Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series and 5000 Series Desktop Processors
    – Digi Power design
    – 10 Power Phase design
  • Chipset
    – AMD X570
  • Memory
    – Dual Channel DDR4 Memory Technology
    – 4 x DDR4 DIMM Slots
    – AMD Ryzen series CPUs (Vermeer) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    – AMD Ryzen series CPUs (Matisse) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    – AMD Ryzen series APUs (Renoir) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    – AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    – AMD Ryzen series APUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
    – Max. capacity of system memory: 128GB*
    – Supports Extreme Memory Profile (XMP) memory modules
    – 15μ Gold Contact in DIMM Slots

    *For Ryzen Series APUs (Picasso and Renoir), ECC is only supported with PRO CPUs.
    Please refer to below table for AMD non-XMP memory frequency support.Ryzen Series CPUs (Vermeer):
    Ryzen Series CPUs (Matisse):
    Ryzen Series APUs (Renoir):
    Ryzen Series CPUs (Pinnacle Ridge):
    Ryzen Series CPUs (Picasso):
    SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label x=1 or 2
    DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
  • BIOS
    – 256Mb AMI UEFI Legal BIOS with GUI support
    – Supports “Plug and Play”
    – ACPI 5.1 compliance wake up events
    – Supports jumperfree
    – SMBIOS 2.3 support
    – CPU, VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment
  • Graphics
    – Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
    – DirectX 12, Pixel Shader 5.0
    – Shared memory default 2GB. Max Shared memory supports up to 16GB.**
    – Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
    – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
    – Supports HDR (High Dynamic Range) with HDMI 2.1
    – Supports HDCP 2.3 with HDMI 2.1 Port
    – Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
    – Supports Microsoft® PlayReady

    *Actual support may vary by CPU

    **The Max shared memory 16GB requires 32GB system memory installed.

  • Audio
    – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    – Supports Surge Protection
    – Gold Audio Jacks
    – Nahimic Audio
  • LAN
    – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    – 1 x Killer E3100G (PCIE x1 Gigabit LAN 10/100/1000/2500 Mb/s)
    – Supports Killer LAN Software
    – Supports Wake-On-LAN
    – Supports Lightning/ESD Protection
    – Supports Energy Efficient Ethernet 802.3az
    – Supports PXE
  • Slots
    AMD Ryzen series CPUs (Vermeer, Matisse)
    – 1 x PCI Express 4.0 x16 Slot (x16 (PCIE1))*
    AMD Ryzen series CPUs (Renoir, Pinnacle Ridge)
    – 1 x PCI Express 3.0 x16 Slot (x16 (PCIE1)*
    AMD Ryzen series APUs (Picasso)
    – 1 x PCI Express 3.0 x16 Slot (x8 (PCIE1))*
    AMD X570 Chipset
    – 2 x PCI Express 4.0 x16 Slots (x4 (PCIE4) / x2 (PCIE6))- 3 x PCI Express 4.0 x1 Slots
    – Supports AMD Quad CrossFireX™ and CrossFireX™
    – 15μ Gold Contact in VGA PCIe Slot (PCIE1)
    – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

    *Supports NVMe SSD as boot disks
  • Storage
    – 6 x SATA3 6.0 Gb/s Connectors
    – 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Renoir, Pinnacle Ridge and Picasso)*
    – 1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Renoir, Pinnacle Ridge and Picasso)*

    * If M2_2 is occupied by a PCIE-type M.2 device, SATA3_5_6 will be disabled.
    If Thunderbolt™ support is enabled, SATA type M.2 will be disabled.
    Supports NVMe SSD as boot disks* Supports ASRock U.2 Kit
  • RAID
    – Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    – Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
  • Connector
    – 1 x Power LED and Speaker Header
    – 2 x RGB LED Headers*
    – 2 x Addressable LED Headers**
    – 1 x CPU Fan Connector (4-pin)***
    – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    – 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
    – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    – 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
    – 1 x Front Panel Audio Connector
    – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card only)
    – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
    – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
    – 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)
    – 1 x Clear CMOS Button

    *Support in total up to 12V/3A, 36W LED Strip

    **Support in total up to 5V/3A, 15W LED Strip

    ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

    ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

    *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use.

  • Rear Panel I/O
    – 1 x Antenna Bracket
    – 1 x PS/2 Mouse/Keyboard Port
    – 1 x HDMI Port
    – 1 x Optical SPDIF Out Port
    – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
    – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
    – 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)*
    – 2 x USB 2.0 Ports (Supports ESD Protection)
    – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    – 1 x BIOS Flashback Button with LED
    – HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

    *USB3_2 and USB31_TA_1 are the Lightning Gaming Ports.
  • Software and UEFI
    Software
    – ASRock Motherboard Utility (Phantom Gaming Tuning)
    – ASRock Killer LAN Software
    – ASRock Polychrome SYNC*
    UEFI
    – ASRock Full HD UEFI
    – ASRock Instant Flash

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Support CD
    – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
  • Accessories
    – Quick Installation Guide, Support CD, I/O Shield
    – 2 x SATA Data Cables
    – 1 x Graphics Card Holder
    – 3 x Screws for M.2 Sockets
    – 1 x Standoff for M.2 Socket
  • Hardware Monitor
    – Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
    – Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, PREM VDDCR_SOC, +1.8V, VDDP
  • Form Factor
    – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
    – Solid Capacitor design
    – 2oz Copper PCB

More information on ASRock’s website.
