Test Setup
For our tests, we used a test rig which includes the GIGABYTE X570 AORUS Pro Wi-Fi motherboard, along with an AMD Ryzen 7 3700X at default clock speed of 3.6GHz (turbo boost 4.4GHz), as well as 32GB (2 x 16GB) of G.Skill Trident Z Royal RGB DDR4-3000 ram in dual channel mode.
All tests were conducted at turbo clock speeds at a resolution of 1920×1080. High or Ultra settings enabled.
| CPU | AMD RYZEN 7 3700X 8-Core 3.6 GHz (4.4 GHz Max Boost) Socket AM4 65W 100-100000071BOX Desktop Processor |
| Cooling | DEEPCOOL Castle 360EX |
| Motherboard | GIGABYTE X570 AORUS Pro Wi-Fi |
| Ram | G.SKILL Trident Z Royal Series 32GB (2 x 16GB) 288-Pin RGB DDR4 SDRAM DDR4 3000 (PC4 24000) Desktop Memory Model F4-3000C16D-32GTRS |
| XMP profiles | Timing 16-18-18-38, CAS Latency 16, Voltage 1.35V |
| SSD/HDD | SAMSUNG 970 EVO PLUS 500GB Internal Solid State Drive (SSD) MZ-V7S500B/AM |
| PSU | Antec High Current Gamer 650W 80 PLUS Gold |
| VGA card | GIGABYTE GeForce GTX 1650 GAMING OC 4GB |
| Nvidia Drivers | Latest GeForce Drivers – WHQL |
| OS | Windows 10 v1903 |

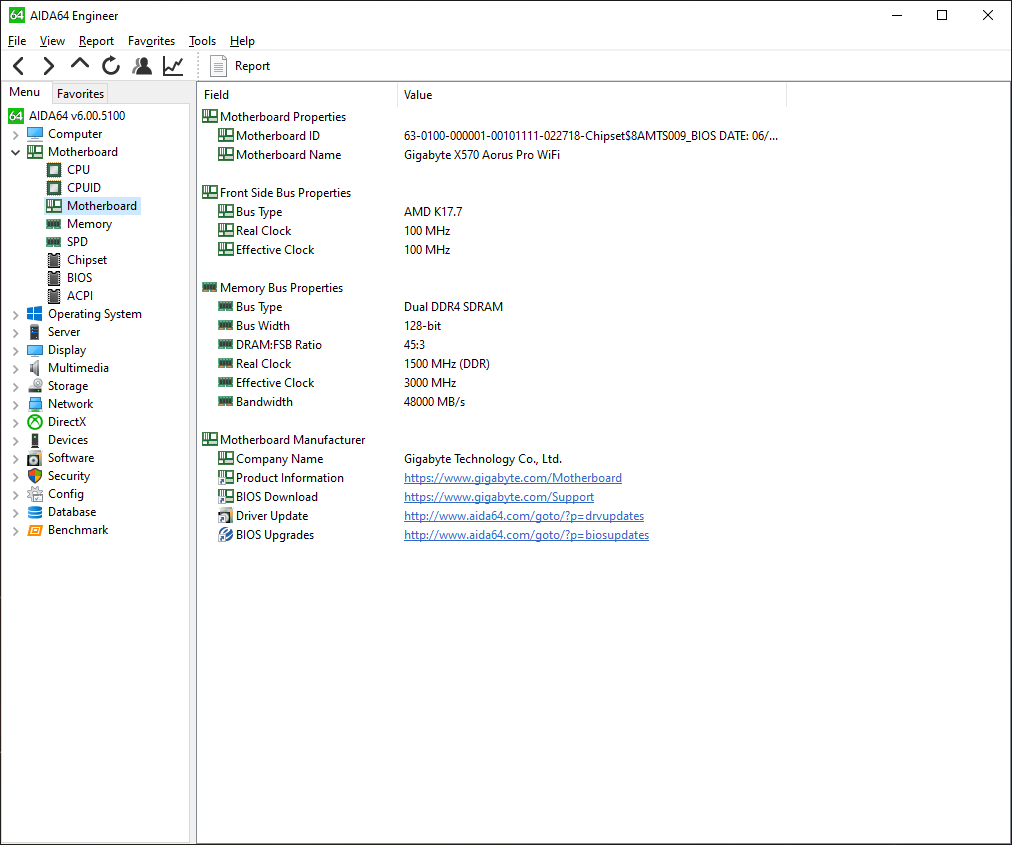

AIDA64 Info
CPU-Z Info
Load Temps
During the thermal testing phase of this review, ambient temperatures were kept to ~23 degrees Celsius for consistency. The temperatures under load were certainly within spec for all of the components, however I will add that the motherboard temperatures were lower than I expected, especially considering that the system is very quiet! Under full load the motherboard did not exceed 35 degrees Celsius! Also, do not fear the chipset cooling fan as it was almost inaudible, even with the system under such an intense load!
