Specifications:
- Capacity: 256GB, 512GB, 1TB, 2TB
- Dimensions: 22.0mm x 80.0mm x 4.8mm
- Weight: 11g
- Interface: PCIe Gen3x4
- Performance Read(max.): up to 3,400MB/s*
- Performance Write(max.): up to 3,000MB/s*
- System Requirement: Computer with M.2 slots supporting PCIe interface and one of the following operating systems: Windows 8.1 or Windows 10
- Operating Temperature: 0°C – 70°C
- MTBF (est): 2,000,000 hours
- Shock Resistance Test: 1500G/0.5ms
- Certification: CE, FCC, BSMI, Green dot, WEEE, RoHS, KCC
- Warranty: 5 years
Note: Please check that this product can fit in the desired memory slot position before making a purchase.
*The SSD warranty is based on the TBW or Warranty period. Please click here for more information about Silicon Power Warranty Policy.
*Performance read/write varies by system performance (such as hardware, software, and interface mode) and capacity
Silicon Power decided to use 96-layer TLC NAND from Toshiba in the XD80 SSD. We had some good results on Toshiba NAND, so it’s a good sign. The XD80 SSD also uses the Phison PS5012-E12S-32 controller, which is getting popular in faster SSD series. The only surprise can be 512 MB of Xi’an UnilC DDR3-1866L DRAM. UnilC is a Chinese brand that is quite new on the memory market but already creates its own projects. So far, the XD80 SSD is the first product where I saw UnilC memory.
Below is a screenshot from the CrystalDiskInfo, which is showing that the SSD is in perfect condition.

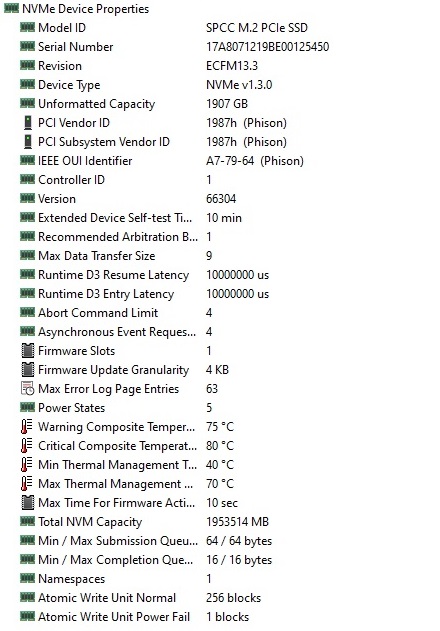

Additionally, here is a screenshot from AIDA64, which is showing some more details about the drive. As we can see, the throttling point is set at above 70°C. As long as the SSD will have at least standard airflow, it shouldn’t throttle. During tests, the temperature was below 70°C, so if there was any throttling, then minimal and didn’t affect our results.
Let’s move to the next page to take a closer look at the package and the drive itself.
