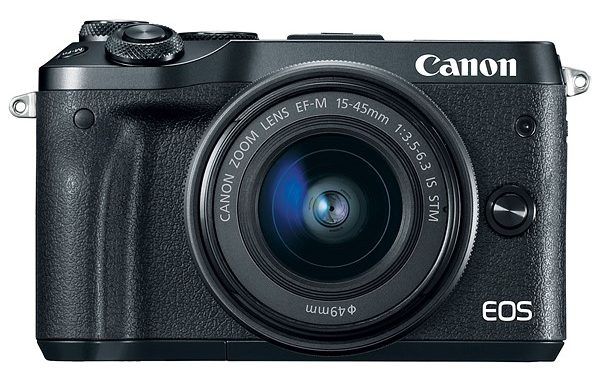

Canon Debuts EOS M6 Mirrorless with Optional EVF

EOS M6

Canon’s newest mirrorless camera, the EOS M6, is a replacement for the entry-level EOS M3 and slides in directly under the enthusiast M5 (confused yet?).

It shares essentially all of the M5’s internal components, including the 24MP APS-C sensor with Dual Pixel CMOS AF, Digic 7 processor and 3″ touchscreen. It’s also capable of 1080/60p video capture and has Wi-Fi, NFC and Bluetooth.

Differentiating factors between are limited to the built-in EVF on the M5 and the flip-up selfie screen on the M6. The M6 gains an additional top plate control dial compared to the M3, which should improve handling.

Canon also announced an optional EVF (the EVF-DC2) for use with the M6. This 2.36M-dot EVF is smaller and lighter than the EVF-DC1 used by the M3, but do note that it does not tilt upward.

The Canon EOS M6 will go on sale in April 2017 in both black and silver. It will sell for $780 body-only, with the EF-M 15-45mm F3.5-6.3 IS STM for $900 or with the EF-M 18-150mm F3.5-6.3 IS STM for $1280. The EVF-DC2 is priced at $250 and also comes in black and silver.

Price
MSRP $779 (body only), $899 (w/15-45mm lens), $1279 (w/18-150mm lens)
Body type
Body type Rangefinder-style mirrorless
Body material Metal
Sensor
Max resolution 6000 x 4000
Other resolutions 3:2 (6000 x 3368, 3984 x 2656, 2976 x 1984, 2400 x 1600), 16:9 (6000 x 3368, 3984 x 2240, 2976 x 1680, 2400 x 1344), 4:3 (5328 x 4000, 3552 x 2664, 2656 x 1992, 2112 x 1600), 1:1 (4000 x 4000, 2656 x 2656, 1984 x 1984, 1600 x 1600)
Image ratio w:h 1:1, 4:3, 3:2, 16:9
Effective pixels 24 megapixels
Sensor photo detectors 26 megapixels
Sensor size APS-C (22.3 x 14.9 mm)
Sensor type CMOS
Processor Digic 7
Color space sRGB, Adobe RGB
Color filter array Primary color filter
ISO Auto, 100-25600
White balance presets 6
Custom white balance Yes
Image stabilization No
Image stabilization notes 5-axis for video only
Uncompressed format RAW
JPEG quality levels Fine, standard
File format
  • JPEG (Exif v2.3)
  • Raw (Canon CR2, 14-bit)
Optics & Focus
Autofocus
  • Contrast Detect (sensor)
  • Phase Detect
  • Multi-area
  • Center
  • Selective single-point
  • Tracking
  • Single
  • Continuous
  • Touch
  • Face Detection
  • Live View
Autofocus assist lamp Yes
Manual focus Yes
Number of focus points 49
Lens mount Canon EF-M
Focal length multiplier 1.6×
Screen / viewfinder
Articulated LCD Tilting
Screen size 3
Screen dots 1,040,000
Touch screen Yes
Screen type TFT LCD
Live view Yes
Viewfinder type Electronic (optional)
Photography features
Minimum shutter speed 30 sec
Maximum shutter speed 1/4000 sec
Exposure modes
  • Program
  • Shutter priority
  • Aperture priority
  • Manual
Built-in flash Yes
Flash range 5.00 m (at ISO 100)
External flash Yes
Flash X sync speed 1/200 sec
Drive modes
  • Single
  • Continuous
  • Self-timer
  • Remote control
Continuous drive 9.0 fps
Self-timer Yes (2 or 10 secs, custom, remote)
Metering modes
  • Multi
  • Center-weighted
  • Spot
  • Partial
Exposure compensation ±3 (at 1/3 EV steps)
AE Bracketing ±2 (3 frames at 1/3 EV steps)
WB Bracketing No
Videography features
Format MPEG-4, H.264
Modes
  • 1920 x 1080 @ 60p / 35 Mbps, MP4, H.264, AAC
  • 1920 x 1080 @ 30p / 24 Mbps, MP4, H.264, AAC
  • 1920 x 1080 @ 24p / 24 Mbps, MP4, H.264, AAC
  • 1280 x 720 @ 60p / 16 Mbps, MP4, H.264, AAC
Microphone Stereo
Speaker Mono
Storage
Storage types SD/SDHC/SDXC card
Connectivity
USB USB 2.0 (480 Mbit/sec)
HDMI Yes (micro-HDMI)
Microphone port Yes
Headphone port No
Wireless Built-In
Wireless notes 802.11/b/g/n with Bluetooth and NFC
Remote control Yes (Wired, wireless, or smartphone)
Physical
Environmentally sealed No
Battery Battery Pack
Battery description LP-E17 lithium-ion battery & charger
Battery Life (CIPA) 295
Weight (inc. batteries) 343 g (0.76 lb / 12.10 oz)
Dimensions 112 x 68 x 45 mm (4.41 x 2.68 x 1.77)
Other features
Orientation sensor Yes
GPS None

Source: dpreview
